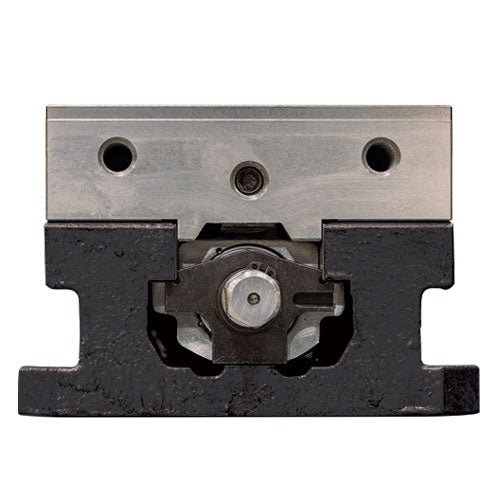

GS TOOLING 6" x 9.13" Precision Milling Machine Vise
GS TOOLING 6" x 9.13" Precision Milling Machine Vise
Regular price
$601.00 USD
Regular price
$702.00 USD
Sale price
$601.00 USD
Unit price
per
• Jaw Width (Inch): 6"
• Orientation Type: Horizontal
• Base Motion Type: Stationary
• Jaw Opening Capacity (Decimal Inch): 9.13"
• Jaw opening increased from 8.8" to 9.13"
• Narrower body style to allow more vises on a machine table
• Spindle does not protrude past the end of the body
• Spherical segment creates all-directional alignment and reduces jaw lift for improved performance
• New brush seal design
• Perpendicularity (running face and jaw plate): 0.0004"
• Parallelism (running face to bottom of bed): 0.0006"
• Material: FCD-60 (80,000psi)
• New stationary jaw: 4 bolt stationary design reduces lift
• Pull-Type design: Reduces stress on body during clamping
• Chip evacuation: Straight through the body on sides and ends. Locations strategically chosen to not reduce body strength
• Orientation Type: Horizontal
• Base Motion Type: Stationary
• Jaw Opening Capacity (Decimal Inch): 9.13"
• Jaw opening increased from 8.8" to 9.13"
• Narrower body style to allow more vises on a machine table
• Spindle does not protrude past the end of the body
• Spherical segment creates all-directional alignment and reduces jaw lift for improved performance
• New brush seal design
• Perpendicularity (running face and jaw plate): 0.0004"
• Parallelism (running face to bottom of bed): 0.0006"
• Material: FCD-60 (80,000psi)
• New stationary jaw: 4 bolt stationary design reduces lift
• Pull-Type design: Reduces stress on body during clamping
• Chip evacuation: Straight through the body on sides and ends. Locations strategically chosen to not reduce body strength
